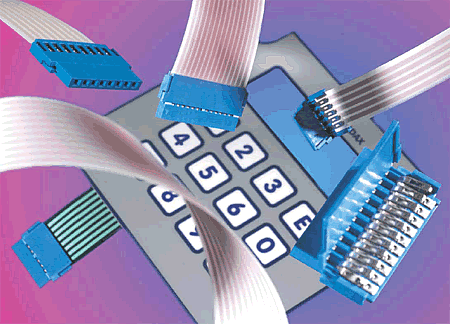

| Integrated Crimp Connector (MICC801) |
|
 |
|
|
| |
MICC801 Series |
| |
* Designed for use on Membrane Switches, Flexible Circuits, Jumper Cables, Sensors, Textile Ribbons etc |
* Mates with Industry Standard 0.635mm Pin Headers |
* Contacts pre-load in Housing ready for Mass Termination |
* 2.54mm Pitch, Compatible with Industry Standard |
* Available in 2-28 ways |
|
* Suitable for Crimping with Industry Standard Tooling |
| |
|
|
|
 |
Technical Characteristics |
|
Contact Material : |
Phosphor Bronze |
Housing Material : |
Polypropylene UL94 V-O Material |
Contact Resistance : |
20 mOhms Max. |
Dielectric Insulations Resistance : |
5,000 MOhms at 500V |
Withstanding Voltage : |
1000V |
Contact Direct Current Rating : |
2A DC |
Operating Temperature : |
-65 to +105 Degree C |
Plating Options : |
Tin(T) 2.5u over 1.25u Nickel |
|
| |
Model Number Index |
MICC801 |
T or G |
- xx |
Series |
T (Tin) or G(Gold) |
No of Ways (2-32) |
| |
|
|
| |
|
|
|
|
